| 작동률: | 96% | 전압: | 220V-380V |
|---|---|---|---|
| 전원: | AC380V, 50Hz, 4kw/시간 | 포장: | 나무 케이스 |
| 주요 힘: | 서보 모터 | 해당 제품: | 트리거 바늘 |
| 색상: | 은의 | 용법: | 혈액 수집 |
| 해당 제품: | 혈액 란셋 바늘 | 작동 유형: | 턴테이블 |
| 용량: | 시간당 4500-18000 | 제어: | plc |
| 강조하다: | safety lancet production line high capacity,safety lancet manufacturing equipment 96% operation rate,lancet production machine 18000 per hour |
||
Features

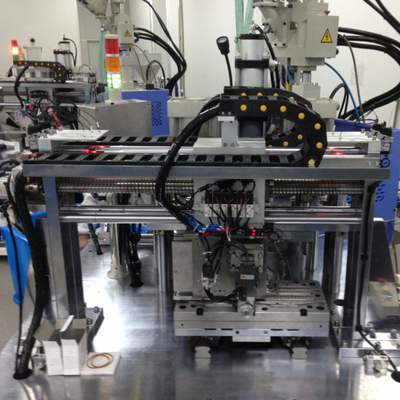

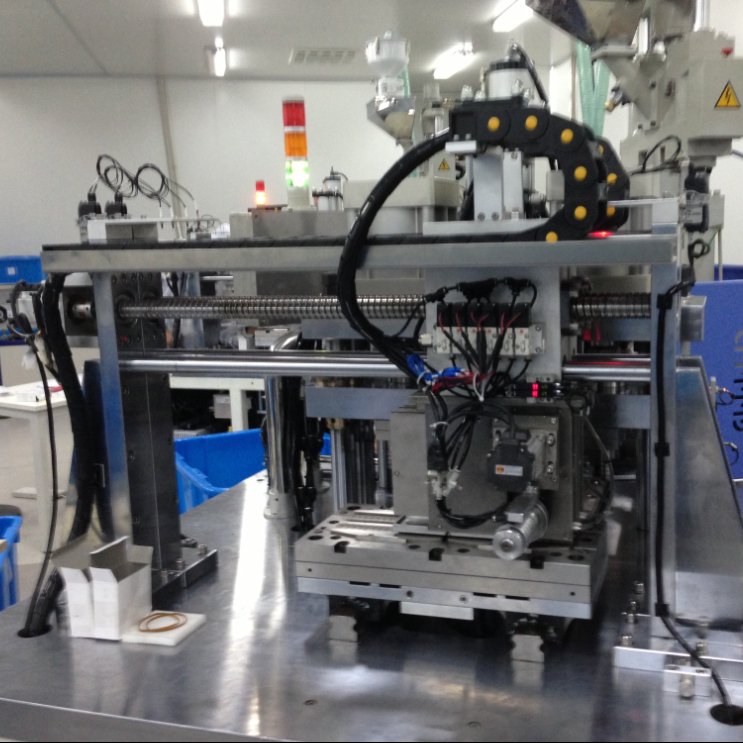

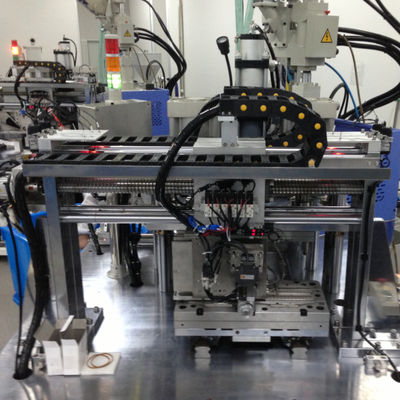

1. For picking placement and injection molding of products with needles like blood lancet, blood collecting needles.
2. Equipped with two needle hoppers, storage capacity 200,000 needles, available 24 hours’ production.
3. Assemble at an inclined angle to avoid needle tip damaging.
4. Binding and tightening device installed in needle hoppers to avoid chaos of needles.
5. Easy removed hopper lid, needles can be loaded within 3 minutes.
6. Production cycle 10-15s, high productivity and good stability.
7. New needle adsorption system (patented), not vacuumization mode, low electricity consumption.
8. Customized according to customer’s real capacity and requirements.
Properties
|
Applicable products |
Pick and place needles then injection moulding for peripheral blood lancet, venous blood collecting needles, products with needles and injection moulding |
|
Production speed |
Depend on moulding cavity quantity |
|
Rate of qualified product |
Above 99% |
|
Rate of operation rate |
Above 97% |
|
Power source |
AC380V, 50Hz,4kw/hr |
|
Dimension |
L1950×W1250×H1900(mm) Actual size varied |
|
Weight |
About 2800kg |
|
Operator |
1set/person |
