제품 상세 정보:
결제 및 배송 조건:
|
| 용량: | 14000-18000pcs/h | 작동 모드: | 오토매틱 |
|---|---|---|---|
| 생산 효율성: | 높은 | 무게: | 500kg |
| 연산자: | 단일 또는 이중 | 제품 주파수: | 50Hz |
| 어셈블리 유형: | 오토매틱 | 조립 용량: | 시간당 4500-12000 |
| 캡 지름 범위: | 10-50 밀리미터 | 작동 인터페이스: | 터치 스크린 |
| 모델: | 캡 조립 기계 | 작동 모드: | 오토매틱 |
| 특징: | 고효율, 간편한 작동 | 기구: | 서보 기구 |
| 해당 제품: | 유로캡 | ||
| 강조하다: | Automatic Euro Cap Assembly Machine 14000pcs/h,Euro Cap Assembly Machine 50Hz,High-speed Euro Cap Assembly Machine |
||
Features

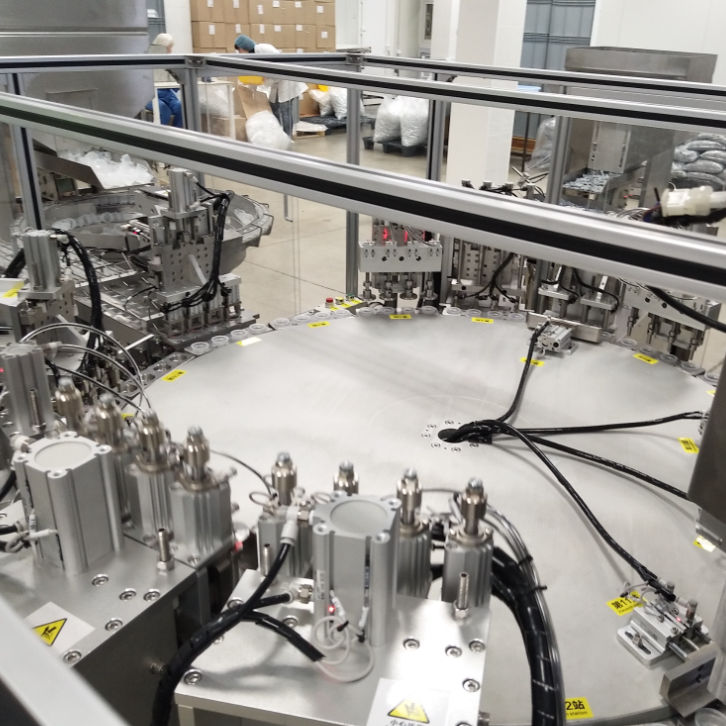

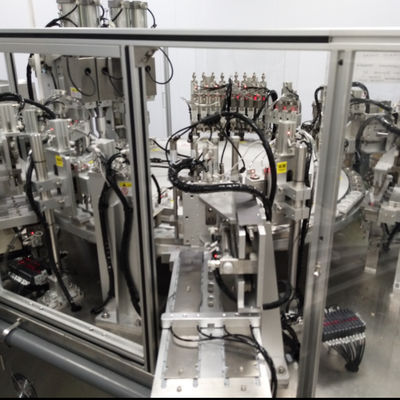

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.
2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards
3. Each workstation has independent driving source , convenient for daily maintenance.
4. The surface in contact with the product is polished to protect the product.
5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.
6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.
7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.
8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.
9. Pneumatic power for shorter time of maintenance
10. Highly customized according to customer's requirements, actual capacity and production demand.
Properties
|
Applicable products |
Loop pull cap, double pull cap, single fold closure, double fold cap, break caps |
|
Production speed |
3600-1400pcs/hr (according to customer’s requirement) |
|
Rate of qualified product |
Above 99% |
|
Rate of operation rate |
Above 95% |
|
Power source |
AC380V,50Hz,4kw/hr |
|
Dimension |
Actual size varied with different production speed |
|
Weight |
About 2300kg |
|
Operator |
3sets/2persons,recommend 1set/person |
