제품 상세 정보:
결제 및 배송 조건:
|
| 크기: | 콤팩트 하고 공간을 절약 하는 디자인 | 만족스러운 비율: | 약 99% |
|---|---|---|---|
| Product Capacity: | 4500pieces/hour | 제품 색상: | 은 |
| 보증: | 1 년 | 작동 방법: | 터치 스크린 컨트롤 |
| 포장: | 나무 케이스 | 작동 압력: | 0.5-0.8mpa |
| 어셈블리 유형: | 완전한 자주 | 자연: | 오토매틱 |
| 정도: | 정확한 | 주요 자료: | 스테인레스 스틸 |
| 내구성: | 오래 지속됩니다 | 효율성 비율: | 95% 이상 |

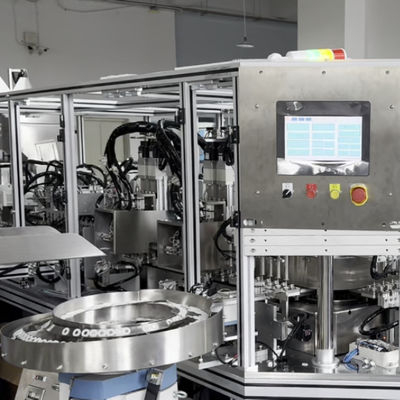

| 강조하다: | 4500pieces/hour Lotion Pump Assembly Machine,99% Satisfactory Rate Trigger Sprayer Assembly Machine,1 Year Warranty Liquid Sprayer Assembly Machine |
||
Features

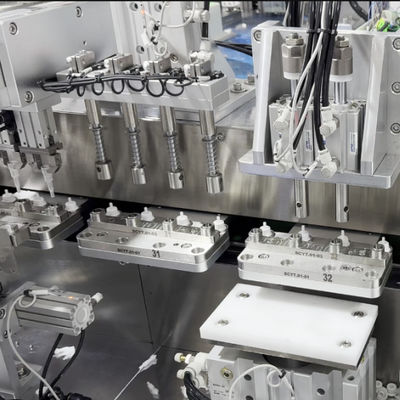

1. Linear sliding rail conveying system will be applied and driven by servo motor to make intermittent movement, fixtures will be in a static state during assembly with precise positioning devices. Each workstation is equipped with a secondary positioning to improve qualified rate of product.
2. Manipulators of each station are independent, simple and easy for daily maintenance.
3. Manipulators are powered by cylinders, shorter time for spare parts change, simpler for debugging and maintenance.
4. The tube insertion process will be silicone oiled automatically, oil storage is 4L.
5. Enclosure for feeding plate can be equipped to reduce noise during production.
6. Each assembly process is followed by detection to ensure there will be no defective products in qualified products.
7. Whole equipment controlled by PLC system and touch screen operation.
Properties
|
Applicable products |
lotion pump shampoo pump water sprayer trigger sprayer perfume pump spray nozzle |
|
Production speed |
1500-2500pcs/hr (according to customer’s requirement) |
|
Rate of qualified product |
Above 98% |
|
Rate of operation rate |
Above 95% |
|
Power source |
AC380V, 50Hz, 4kw/hr |
|
Dimension |
Actual size varied with different production speed |
|
Weight |
About 3000kg |
|
Operator |
1set/person |
