제품 상세 정보:
결제 및 배송 조건:
|
| 색상: | 은 | 링크: | 자동 조립 생산 라인 |
|---|---|---|---|
| 주요 자료: | 스테인레스 스틸 | 조립 속도: | 고속 |
| 조립 범위: | 1-50mm | 보증 기간: | 1 년 |
| 기원: | 중국 | 메인 드라이브: | 서보 모터 및 인덱싱 디스크 |
| 제어: | plc | 색상: | 스테인레스 스틸 금속성 |
| 포장: | 나무 케이스 | 작동률: | 98% |
| 능률: | 높은 | 전원: | 전기 |
| 강조하다: | 98% Operation Rate Medical Product Assembly Machine,2500-8000pph Production Speed IV Soft Bag Caps and Ports Assembly Machine,High Efficiency Automatic Assembly Production Line |
||
Features

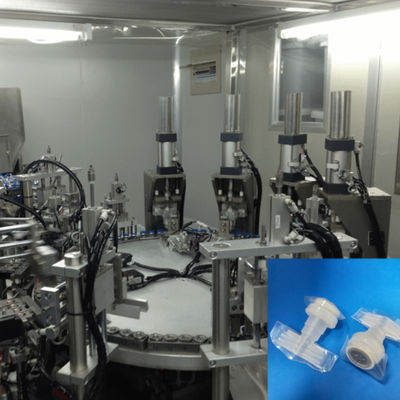

1. Automatic assembly of IV soft bag caps and ports welding machine .
2. Main power servo motor + cam indexing drive, which provide accurate assembly position and high quality accuracy.
3. Each assembly process is followed by detection function to ensure high qualified rate of assembly products.
4. Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenance personals.
5. All driving and inspection systems made from outstanding international suppliers
6. All materials of the equipment are made of stainless steel + aluminum alloy, in line with clean room requirements and GMP standards.
7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.
Properties
|
Applicable products |
Nasal swab, nasal collector, nasal sampler |
|
Production speed |
2500-8000pph |
|
Rate of qualified product |
Above 98% |
|
Rate of operation rate |
Above 95% |
|
Power source |
AC380V, 50Hz,5kw/h, air pressure 7kg/m3 |
|
dimension |
Actual size varied with production speed |
|
weight |
About 2850kg |
|
operator |
1set/person |
