유로 캡 조립 기계
Created with Pixso.

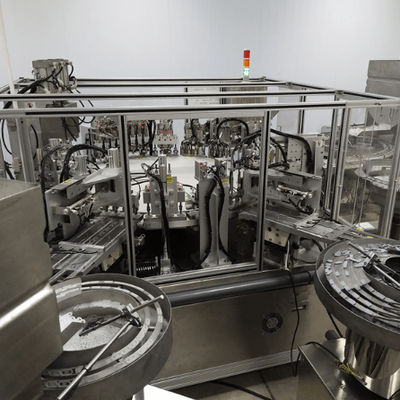

Automatic Euro Cap Assembly Machine with 0.6 MPa Air Pressure and 4500-12000 per/hour Capacity for 99% Qualified Rate

Automatic Euro Cap Assembly Machine with 0.6 MPa Air Pressure and 4500-12000 per/hour Capacity for 99% Qualified Rate

브랜드 이름: SENCAN
모델 번호: SC-TP-815
MOQ: 1세트
가격: Negotiate price according to actual situation
지불 조건: T/T,L/C
공급 능력: 2-10 세트
상세 정보
원래 장소:
중국
인증:
CE, ISO9001
조립 용량:
시간당 4500-12000
기압:
0.6 MPa
유형:
오토매틱
속도:
조절할 수 있는
주요 힘:
서보 기구
운전하다:
서보 모터
병 유형:
플라스틱 병
해당 제품:
더블 폴드 캡
공기 압력 게이지:
SMC
제어:
PLC
기구:
서보 기구
작동 모드:
오토매틱
제품 자료:
금속/플라스틱
포장 세부 사항:
나무 케이스
강조하다:

0.6 MPa Air Pressure Euro Cap Assembly Machine

,

4500-12000 per/hour Automatic Cap Assembly Machine

,

99% Qualified Rate Infusion Cap Assembly Machine

제품 설명

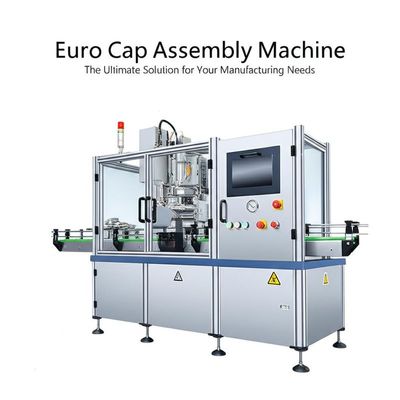

Euro Cap Assembly Machine - The Ultimate Solution for Your Manufacturing Needs
Product Features
  • Designed for automatic assembly of easy peel foil caps for IV infusion soft bags and bottles
  • Constructed with stainless steel and aluminum alloy materials, fully compliant with GMP standards
  • Independent driving source at each workstation for simplified maintenance
  • Product-contact surfaces are polished for optimal product protection
  • Automated foil cutting and welding process
  • Integrated check function after each assembly step to eliminate defective products
  • User-friendly PLC control system with human-machine interface operation
  • Precision servo motor + indexing drive system ensures high assembly accuracy
  • Pneumatic power system reduces maintenance time and technical requirements
  • Fully customizable to meet specific product specifications and production demands
Technical Specifications
Applicable Products Peel seal foil caps, foil seal closures and lids
Production Speed 1,500-8,500 pieces/hour (customizable)
Product Qualification Rate Above 99%
Operation Rate Above 95%
Power Source AC380V, 50Hz, 4kW/hour
Dimensions Varies according to production speed requirements
Weight Approximately 2,000kg
Operator Requirements 3 sets/2 persons (recommended 1 set/person)
