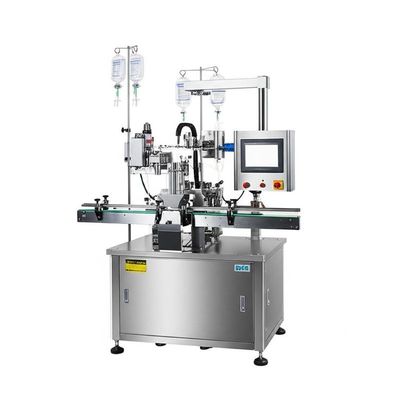

Automatic IV Infusion Peel-foil Cap Assembly Machine with 4000-12000 Caps per Hour and 99% Qualified Rate

브랜드 이름:	SENCAN
모델 번호:	SC-TP-818
MOQ:	1세트
가격:	Negotiate price according to actual situation
지불 조건:	T/T,L/C
공급 능력:	2-20 세트

상세 정보

원래 장소:

중국

인증:

CE, ISO9001

제품 용량:

시간당 4000-12000 캡

모델:

캡 조립 기계

자동화 등급:

오토매틱

제품 브랜드:

유로

작동 속도:

조절할 수 있는

활동적인 힘:

서보 모터 또는 실린더

작동률:

98%

공기 압력 게이지:

SMC

캡 유형:

주입 캡

포장 세부 사항:

나무 케이스

강조하다:

제품 설명

IV Infusion Peel-foil Cap Assembly Machine

Key Features

Automated assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel and aluminum alloy materials, compliant with GMP standards
Independent driving source for each workstation, facilitating easy maintenance
Product-contact surfaces are polished for product protection
Automatic foil cutting and welding process
Integrated quality check function after each assembly step to eliminate defects
User-friendly PLC control system with human-machine interface operation
Precision assembly with servo motor + indexing drive power system
Pneumatic power system reduces maintenance time and technical requirements
Fully customizable to meet specific product specifications and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1500-8500pcs/hr (customizable to customer requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies according to production speed requirements
Weight	Approximately 2000kg
Operator Requirements	3 sets/2 persons (recommended 1 set/person)
