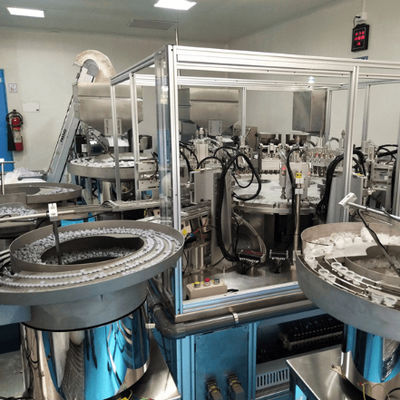

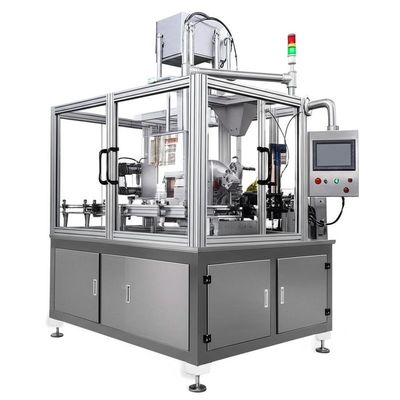

High-Speed Euro Cap Assembly Machine with 14000 Caps per Hour 95% Operation Rate and AC380V Power Source

브랜드 이름:	SENCAN
모델 번호:	SC-TP-819
MOQ:	1세트
가격:	Negotiate price according to actual situation
지불 조건:	T/T,L/C
공급 능력:	2-20 세트

상세 정보

원래 장소:

중국

인증:

CE, ISO9001

제어:

PLC

가동률:

96%

작동 유형:

Turetable/Mechanical

제품 자료:

금속

제품 브랜드:

유로

전원:

AC380V,50Hz

보증 기간:

1년

활동적인 힘:

서보 모터 또는 실린더

작동 모드:

오토매틱

모델:

캡 조립 기계

조립 속도:

시간당 14000 캡

포장 세부 사항:

나무 케이스

강조하다:

제품 설명

High-Performance Euro Cap Assembly Machine for Consistent Output

Product Features

Automated assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel and aluminum alloy materials, compliant with GMP standards
Independent driving source for each workstation, facilitating easy maintenance
Product-contact surfaces polished for optimal product protection
Automatic foil cutting and welding process
Integrated quality check function at each assembly stage to eliminate defects
PLC control system with user-friendly human-machine interface operation
Servo motor + indexing drive power system for high assembly precision and qualification rates
Pneumatic power system reduces maintenance time and technical requirements
Fully customizable to meet specific product specifications and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1500-8500pcs/hr (customizable to requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies according to production speed requirements
Weight	Approximately 2000kg
Operator Requirements	3 sets/2 persons (recommended 1 set/person)
