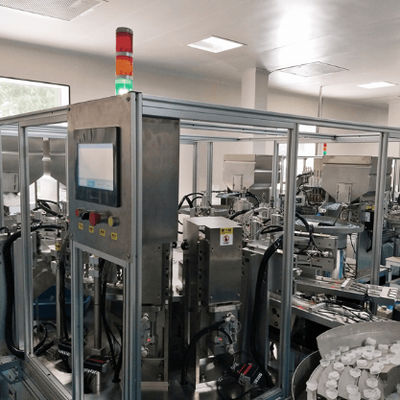

High Precision Euro Cap Assembly Machine with 99% Qualified Rate and 95% Operation Rate for IV Infusion Bags

브랜드 이름:	SENCAN
모델 번호:	SC-TP-821
MOQ:	1세트
가격:	Negotiate price according to actual situation
지불 조건:	T/T,L/C
공급 능력:	2-20 세트

상세 정보

제품 설명

상세 정보

원래 장소:

중국

인증:

CE, ISO9001

운영 타이어:

턴테이블

적용 가능한 캡:

유로 캡

제품 크기:

크기가 큰

정확성:

높은

제품 유형:

어셈블리 기계

색상:

스테인레스 스틸 금속성

작동 인터페이스:

터치스크린

보증:

1년

생산능력:

시간당 4500-16000

전원공급장치:

220V/50Hz

기압:

0.6-0.8mpa

구성:

주입 플림 캡 어셈블리 기계

제품 모델:

의료 주입 캡

제품 브랜드:

유로

전압:

220V

포장 세부 사항:

나무 케이스

강조하다:

99% Qualified Rate Euro Cap Assembly Machine

95% Operation Rate Euro Cap Assembly Machine

220V/50Hz Euro Cap Assembly Machine

제품 설명

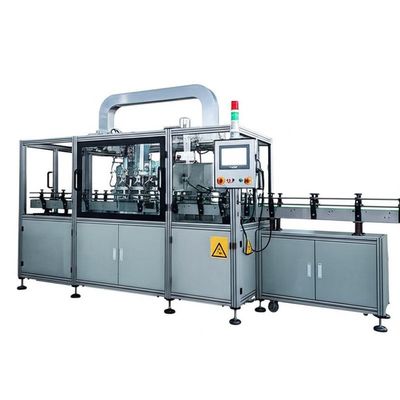

Customizable Euro Cap Assembly Machine

A precision-engineered solution for automatic assembly of peel seal foil caps, designed to meet your specific production requirements while maintaining high quality standards.

Key Features

Designed for automatic assembly of easy peel foil caps for IV infusion soft bags and bottles
Constructed with stainless steel + aluminum alloy materials, fully compliant with GMP standards
Independent driving source for each workstation, facilitating easy maintenance
Product-contact surfaces are polished for optimal product protection
Automated foil cutting and welding process
Integrated quality check function at each assembly stage to eliminate defective products
User-friendly PLC control system with human-machine interface, requiring minimal operator training
High-precision servo motor + indexing drive system ensures superior assembly accuracy
Pneumatic power system reduces maintenance time and technical requirements
Fully customizable to match your product specifications, capacity needs, and production demands

Technical Specifications

Applicable Products	Peel seal foil caps, foil seal closures and lids
Production Speed	1500-8500pcs/hr (customizable to customer requirements)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies according to production speed requirements
Weight	Approximately 2000kg
Operator Requirements	3 sets/2 persons (recommended 1 set/person)
