High-Speed Euro Cap Assembly Machine with 3600-1400pcs/hr Production and 0.6-0.8MPa Air Pressure for Infusion Caps

브랜드 이름:	SENCAN
모델 번호:	SC-TP-821
MOQ:	1세트
가격:	Negotiate price according to actual situation
지불 조건:	T/T,L/C
공급 능력:	2-20 세트

상세 정보

제품 설명

상세 정보

원래 장소:

중국

인증:

CE, ISO9001

전원:

전기

정확성:

높은

기구:

서보 기구

만족스러운 비율:

99% 이상

구성:

정밀검사 기계

색상:

스테인레스 스틸 금속성

작동 방법:

턴테이블/기계식

적당한 캡:

유로 캡

캡 유형:

유로캡

해당 제품:

주입 캡

제어 시스템:

PLC + 터치 스크린

작동 인터페이스:

터치스크린

기압:

0.6-0.8mpa

포장 세부 사항:

나무 케이스

강조하다:

3600-1400pcs/hr Euro Cap Assembly Machine

0.6-0.8MPa Air Pressure Infusion Cap Assembly Machine

Above 95% Operation Rate Automatic Cap Assembly Machine

제품 설명

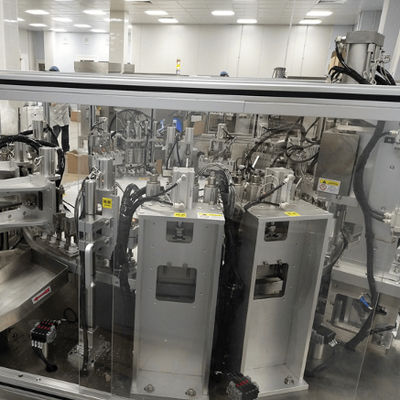

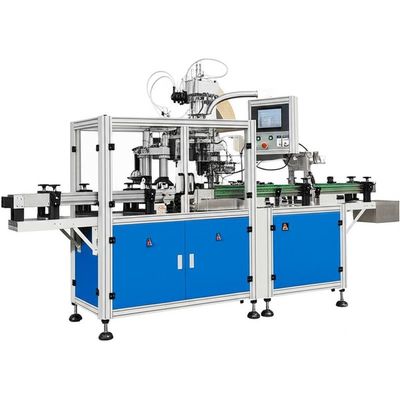

Professional Euro Cap Assembly Machine

A high-performance automated solution for assembling caps on plastic IV infusion bags and bottles, designed to meet rigorous manufacturing standards.

Key Features

Constructed with stainless steel + aluminum alloy, compliant with ISO and GMP standards
Independent workstation drive systems for easy maintenance
Product-contact surfaces polished for optimal product protection
Servo-linked rod structure ensures consistent pressing quality across all workstations
Integrated inspection functions after each assembly process
User-friendly PLC control system with HMI interface
Precision servo motor + indexing drive for high assembly accuracy
Pneumatic power reduces maintenance downtime
Fully customizable to specific production requirements

Technical Specifications

Applicable Products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production Speed	3600-1400pcs/hr (customizable)
Qualified Product Rate	Above 99%
Operation Rate	Above 95%
Power Source	AC380V, 50Hz, 4kw/hr
Dimensions	Varies with production speed
Weight	Approximately 2300kg
Operator Requirement	3 sets/2 persons (recommended 1 set/person)
