AC380V 4kw/hr 2000kg CRC Cap Assembly Machine for Desiccant Caps with High Assembly Accuracy
상세 제품 설명
| 작동 모드: |
오토매틱 |
적합 한 병 종류: |
플라스틱 병 |
| 보증 기간: |
12개월 |
유형: |
어셈블리 기계 |
| 작동 모드: |
오토매틱 |
작업: |
터치스크린 |
| 세이프티페리처스: |
비상 정지 버튼, 안전 경비원 |
안전 장치: |
비상 정지 버튼 |
| 공기 소비: |
0.5m3/min |
자격을 갖춘 요율: |
98% |
| 해당 제품: |
CRC 캡이있는 병 |
빈도: |
50Hz |
| ProductName: |
CRC 캡 조립 기계 |
| 강조하다: |
AC380V CRC Cap Assembly Machine, 4kw/hr Desiccant Cap Assembly Machine, 2000kg Child Resistant Cap Assembly Machine |

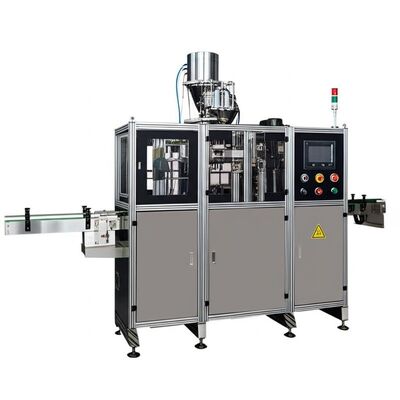

Precision CRC Cap Assembly Machine
Product Description
Advanced control systems ensure accurate and consistent cap placement for various industrial applications.
Key Features
- Designed for assembly of medicinal flange covers, duck tongue covers, spring covers, and moisture-proof agents
- Capable of automatic filling for granular desiccants (molecular sieve, silica gel) and assembly of block desiccants
- Integrated automatic punching and cutting film mechanism reduces production costs and improves product quality
- Centralized processing of sealing paper waste minimizes operator workload
- Connects to desiccant centralized supply bin to prevent moisture absorption and contamination
- Circular cover feeding system ensures stable and rapid operation
- Servo motor + splitter power system delivers stable running speed and high assembly accuracy
- Each assembly step includes testing function to guarantee 100% product quality
- Automatic counting function simplifies output statistics
- Separate export channels for good and defective products
- PLC control system with user-friendly interface reduces operator difficulty
- Customizable to meet specific production capacity and product specifications
- Compatible with injection molding machines and image detection systems for complete automated production lines
Technical Specifications
| Applicable Products |
Desiccant cap, silica gel desiccant cap, moisture-proof lid, safety cap, CRC cap |
| Production Speed |
1,500-8,500 pcs/hr (customizable) |
| Product Qualification Rate |
Above 99% |
| Operation Rate |
Above 95% |
| Power Source |
AC380V, 50Hz, 4kw/hr |
| Dimensions |
Varies according to production speed requirements |
| Weight |
Approximately 2,000kg |
| Operator Requirements |
3 sets/2 persons (recommended: 1 set/person) |
